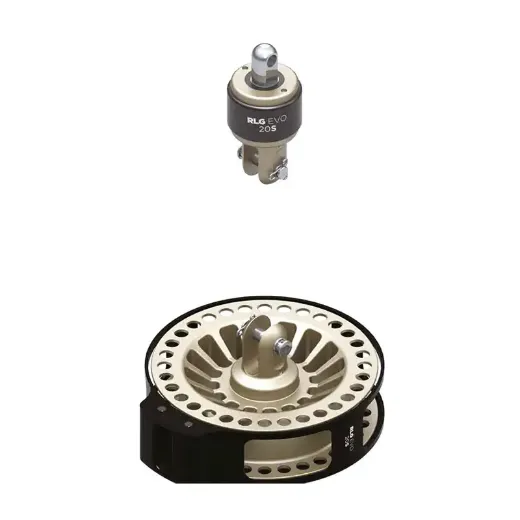

New furling system for structural stays, evolution of the wide known and patented ROLLGEN system.
This latest innovation is characterized by a line stowing drum to be used in combination with NO TORSION stays.
Light-weight and functional: these characteristics are obtained thanks to the use of materials such as Ergal and 17-4PH steel.
It is manufactured from aluminum blocks thanks to the use of CNC machines and makes use of high load bearings in order to allow for the parts to slide perfectly.
- It makes use of sealed high load bearings.
- Reduced overall dimensions. It allows you keep the sail tack very low on deck.

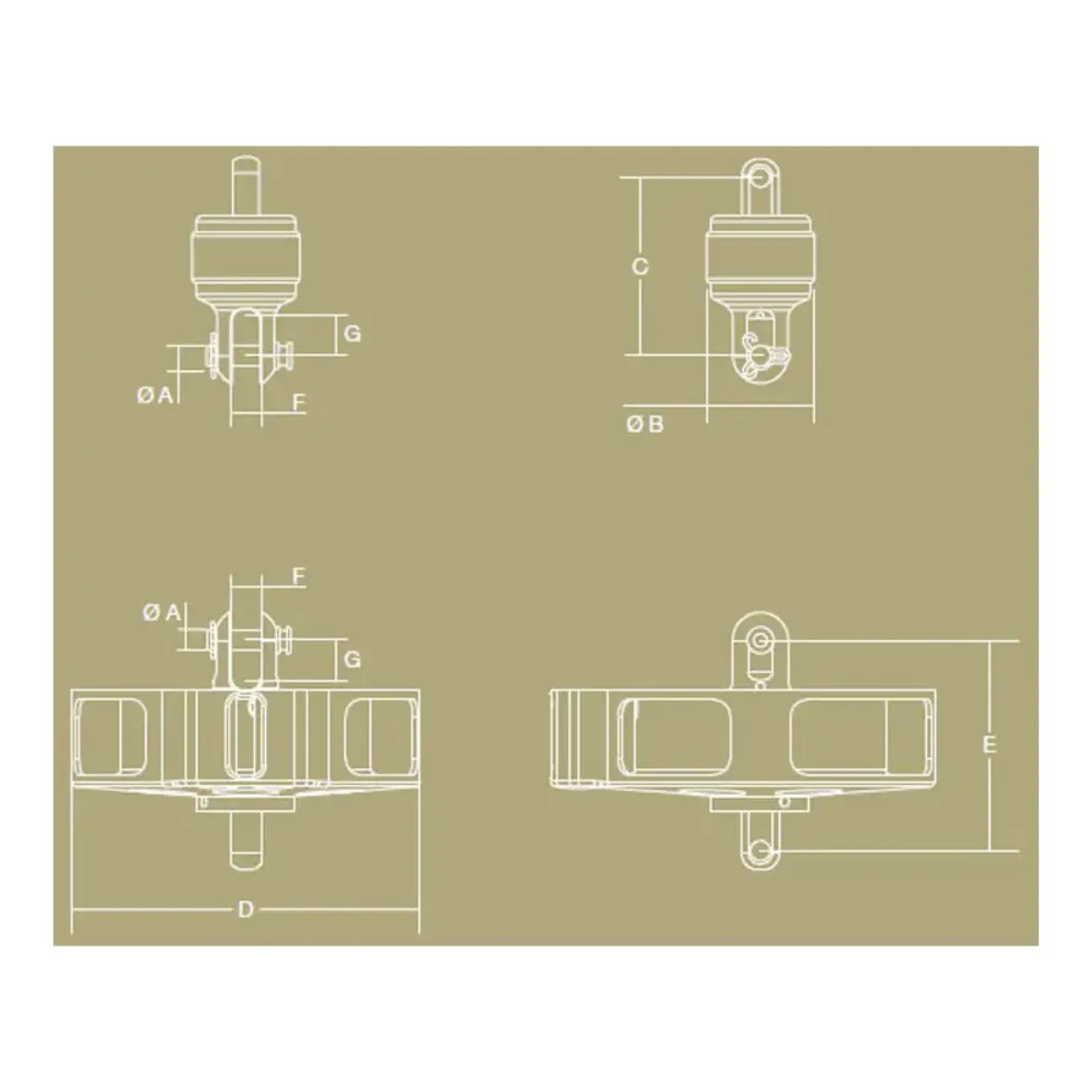

Model | Ø A mm | Ø B mm | C mm | D mm | E mm | F mm | G mm |
20 | 12 | 60 | 113 | 210 | 127 | 18 | 22,5 |
25 | 16 | 78 | 129 | 260 | 144 | 25 | 28 |
25SR | 18 | 78 | 136 | 240 | 150 | 21 | 31 |
35 | 22 | 100 | 172 | 300 | 194 | 25 | 32 |
Model | 20 | 25 | 25SR | 35 |
Pin Ø mm | 12 | 16 | 18 | 22 |
Drum Ø mm | 210 | 260 | 240 | 300 |
Ø 6 mm line max stowage m | 13 | 17 | 24 | - |
Halyard swivel Weight kg | 0,88 | 1,25 | 1,42 | 3,10 |
Drum Weight kg | 2,30 | 3,73 | 3,60 | 6,92 |
Max WL kg | 5000 | 8000 | 10000 | 15000 |
